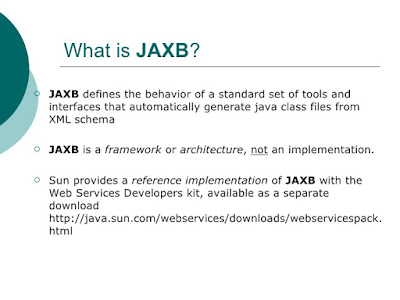

JAXB, stands for Java API for XML Binding or sometimes Java Architecture for XML Binding is a decade old technology to directly convert a Java object into XML document (marshaling) and back to XML file into Java object(unmarshalling). It uses combination of annotations and getters and setters to marshal Java object into XML. JAXB actually defines the behavior of a standard set of tools and interfaces that automatically generate Java class files from XML schema, remember JAXB is actually a framework and architecture, not an implementation. The package java.xml.bind provides a runtime binding framework for clients to marshal, unmarshal and validate XML file in Java. BTW, JAXB is not the only option to parse XML in Java, you can always use SAX or DOM parser or JAXP API to convert XML to Java object and vice-versa. If you want to learn more about XML processing in Java, I suggest to look at chapter 2 of Core Java Volume 2 By Cay S. Horstmann. This book covers not only DOM and SAX but also StAX parser and locating information with XPath.
Then you create a marshaller from JAXBContext class and ask it to convert an instance of class Item into XML, as shown below :
This will print following XML String into your console :
Here is the complete Java program to convert a Java object to XML file using JAXB API :
2) Always remember to annotate your Java class with @XmlRootElement annotation, this would be your main tag in XML and each property using @XmlElement, they will appear as child element of the main tag.
That's all about how to convert Java Object to XML. In next tutorial you will learn how to do unmarshalling i.e. converting an XML back to Java object. Even though you might know about various XML parsers e.g. DOM, SAX and StAX, its good to know JAXP and JAXB as well. As Java and XML goes hand and hand, they add another tool into Java developer's arsenal. If you are looking for some books to learn XML processing in Java, you can always refer core Java volume 2 for basic knowledge. It will give you nice overview of different parser, XML binding and XPath, but if you want to learn in more in depth then you can refer Java and XML by Brett McLaughlin. Its another good book to learn about XML processing in Java.
How to use JAXB in Java - An Example
Let's see how you can use JAXB to create XML document from Java classes This is how JAXB works, let's say you have a Item object that needs to be converted to XML document, all you need to do is create a class Item with getters and annotate them appropriately as shown below :@XmlRootElement public class Item{ private int id; private String name; private long price; public Item(){ // no argument constructor required by JAXB } public Item(int id, String name, long price) { super(); this.id = id; this.name = name; this.price = price; } @XmlElement public int getId() { return id; } @XmlElement public String getName() { return name; } @XmlElement public long getPrice() { return price; } }
Then you create a marshaller from JAXBContext class and ask it to convert an instance of class Item into XML, as shown below :
Item dvd = new Item(101, "Lord of the Rings", 10); JAXBContext context = JAXBContext.newInstance(Item.class); Marshaller marshaller = context.createMarshaller(); marshaller.marshal(dvd, System.out);
This will print following XML String into your console :
You can see how easy it is to convert a Java object to XML using JAXB. You don't need to worry about mapping types, opening tag, closing tag or doing anything related to XML by hand.Here is the complete Java program to convert a Java object to XML file using JAXB API :
import javax.xml.bind.JAXBContext; import javax.xml.bind.JAXBException; import javax.xml.bind.Marshaller; import javax.xml.bind.annotation.XmlElement; import javax.xml.bind.annotation.XmlRootElement; /** * Java program to convert Java object to XML Document using * JAXB API. Converting a Java object to XML is also knonwn * as marshalling and reverse process is called unmarshalling. * * @author Javin Paul */ public class JAXBDemo{ public static void main(String args[]) throws JAXBException { final Item dvd = new Item(101, "Lord of the Rings", 10); final JAXBContext context = JAXBContext.newInstance(Item.class); final Marshaller marshaller = context.createMarshaller(); marshaller.marshal(dvd, System.out); } } @XmlRootElement class Item{ private int id; private String name; private long price; public Item(){ // no argument constructor required by JAXB } public Item(int id, String name, long price) { super(); this.id = id; this.name = name; this.price = price; } @XmlElement public int getId() { return id; } @XmlElement public String getName() { return name; } @XmlElement public long getPrice() { return price; } }
Things to keep in mind :
1) Your Java class must have a no-argument constructor, otherwise JAXB will not able to marshal it. You will get following Exception :Exception in thread "main" com.sun.xml.internal.bind.v2.runtime.IllegalAnnotationsException: 1 counts of IllegalAnnotationExceptions Item does not have a no-arg default constructor. at com.sun.xml.internal.bind.v2.runtime.IllegalAnnotationsException$Builder.check(Unknown Source) at com.sun.xml.internal.bind.v2.runtime.JAXBContextImpl.getTypeInfoSet(Unknown Source) at com.sun.xml.internal.bind.v2.runtime.JAXBContextImpl.<init>(Unknown Source) at com.sun.xml.internal.bind.v2.runtime.JAXBContextImpl.<init>(Unknown Source) at com.sun.xml.internal.bind.v2.runtime.JAXBContextImpl$JAXBContextBuilder.build(Unknown Source) at com.sun.xml.internal.bind.v2.ContextFactory.createContext(Unknown Source) at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method) at sun.reflect.NativeMethodAccessorImpl.invoke(Unknown Source) at sun.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source) at java.lang.reflect.Method.invoke(Unknown Source) at javax.xml.bind.ContextFinder.newInstance(Unknown Source) at javax.xml.bind.ContextFinder.newInstance(Unknown Source) at javax.xml.bind.ContextFinder.find(Unknown Source) at javax.xml.bind.JAXBContext.newInstance(Unknown Source) at javax.xml.bind.JAXBContext.newInstance(Unknown Source)
2) Always remember to annotate your Java class with @XmlRootElement annotation, this would be your main tag in XML and each property using @XmlElement, they will appear as child element of the main tag.
That's all about how to convert Java Object to XML. In next tutorial you will learn how to do unmarshalling i.e. converting an XML back to Java object. Even though you might know about various XML parsers e.g. DOM, SAX and StAX, its good to know JAXP and JAXB as well. As Java and XML goes hand and hand, they add another tool into Java developer's arsenal. If you are looking for some books to learn XML processing in Java, you can always refer core Java volume 2 for basic knowledge. It will give you nice overview of different parser, XML binding and XPath, but if you want to learn in more in depth then you can refer Java and XML by Brett McLaughlin. Its another good book to learn about XML processing in Java.
